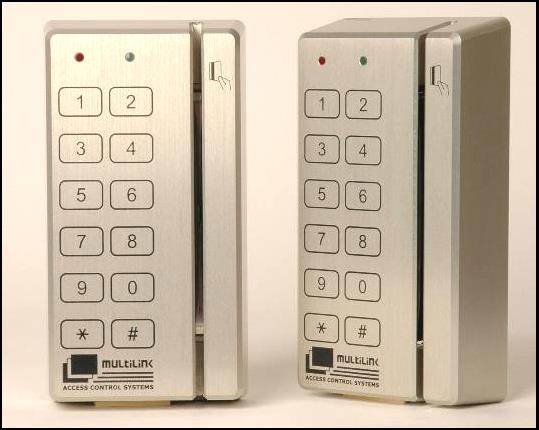

MULTILINK MVR3 MAGNETIC SWIPE READER / COMBINED PIEZO KEYPAD



MULTILINK MR5 MAGNETIC SWIPE READER



Text Box: A combination of a virtually indestructible keypad with a Magnetic stripe reader offering the security industry the best of both worlds for the first time.
Vandal resistant, Tamper resistant
Weather Proof (-15F to +158°F) (-25°C to +70°C)
Water Proof and Dust Proof (IP67)
Ideal for high traffic areas
Keypad (no moving parts, solid state construction)
Anodised graphics that will never wear off
Lifetime Warranty


Text Box: Multilink MVR1 Vandal resistant keypad reader, offering the ultimate in strength and durability where magnetic stripe, PIN and or both are required for entry. With a tamperproof keypad and a weather proof, solid brushed aluminium casing, the keypad is designed to function dependably even in harsh climates or high-risk, high-traffic environments.

The magnetic stripe reader and a piezoelectric keypad-are contained within a single, vandal resistant metal housing.
Complete with red and green status LED's. The keypad uses solid state peizo sounder technology to provide audible feedback.

Protocol: Clock & Data Track 2

Card encoding: 75bpi

Dimensions: 140 x 74 x 33mm

Power: 12vdc

Current: 150mA

Environment: IP67 -

Temperature 20 to +60°C (non-condensing)







Protocol: Clock & Data Track 2

Dimensions: 140 x 50 x 35mm

Power: 5 VDC

Current: 150mA

Environment: Internal or External use.







SKU/Item Number: MR5

Text Box: The Multilink MR5 magnetic card reader can be used internally or externally. The reader case is die cast and is highly resistant to damage. It is available in ivory powder coat which blends in  with most wall finishes.
The reader is supplied with a flat 90cm pigtail cable which terminates at the reader end into a RJ45 plug. This makes servicing very simple. The front cover is secured with a supplied security screw.
